Old product

Sharp Fastbox PC

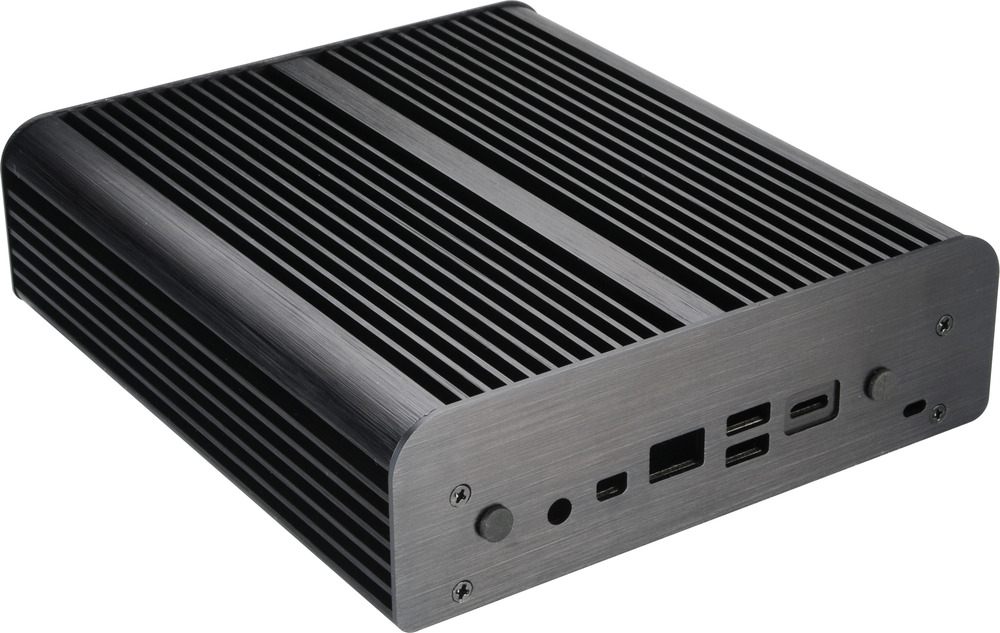

The Fastbox PC is a purpose built Sharp PC for BIG PAD displays. It features a compact, powerful and high quality solid-state design with a fast Intel Core i5 processor. The Pre-installed Sharp image contains all BIG PAD software applications and the included cables ensures a true "Plug and Go" experience with fast user setup.

The Fastbox PC is the perfect choice for mounting on the back of a BIG PAD interactive touch monitor or any other Sharp Large Format Display product. The powerful graphics chipset supports 2x high resolution 4K UHD video outputs, and is even optimised for the dual Multi-Board interactive wall solution.

With a fanless design, solid state hard disk (SSD) robust aluminium cabinet construction supporting a wide operating temperature range from 0°C to 50°C, the Fastbox PC is a reliable, 24/7, professional-grade PC. The Fastbox PC is the perfect complementary option for any Sharp BIG PAD in office areas through to demanding mission-critical environments.

Caratteristiche chiave

  • Purpose developed and exclusive design, optimised for Sharp BIG PADs (inc. MULTI-BOARD Applications)
  • Easy and Fast, All-In-One, "Plug & Go" installation (inc. pre-configured Sharp applications)
  • Powerful, reliable and long-life performance with industrial-grade components
  • EMBEDDED WINDOWS 8 FOR LONGTERM SERVICABILITY
  • trouble free FANLESS and SSD TECHNOLOGY
  • Robust aluminium small form factor PC cabinet with VESA Mounting
  • Fast Performance Intel Core i5 Maple Canyon 2.3 GHz CPU with 2x 4K Outputs
  • THREE YEARS WARRANTY (Made in Germany)

Old product

Sharp Fastbox PC

Funzionalità aggiuntive
Safety & Ergonomics CE
Installazione
Montaggio (VESA/Numero di punti/picco mm) 100 x 100
Montaggio (VESA/Numero di punti/picco mm) 4
Accessori
Accessories Adattatore AC, Cavo di alimentazione
Connettività (Audio/Video) USCITA
DisplayPort 2
Specifiche principali
Colore cabinato Nero
Specifiche dell'interfaccia touch
Compatibilità Sistema operativo Windows Embedded Standard 8 (Image SHARP Electronics)
Alimentazione e ambiente operativo
Tensione operativa (ACV) / Frequenza (Hz) 50-60
Consumo di corrente (W) (funzionamento MASSIMO) 65
Connettività (controllo/seriale) Dati
Porta LAN 1
USB 4
LCD Opt
Clock Speed (GHz) 2.3
Audio Jack 1
Processor Intel Core i5
Graphics Intel HD Graphics 5500 (IGP)

Old product

Sharp Fastbox PC

Scheda tecnica

Scheda tecnica L2001FASTBOXPC

15.10.2019
